How to set up Google Workspace SSO for your School using the new SAML process

Summary

• Create a custom SAML app in the Google Workspace Admin console and send your IdP details (SSO URL, Entity ID, and certificate) to ClickView Support to initiate the connection.
• Receive your ClickView-specific ACS URL and Entity ID from Support and enter them into the SAML app configuration before continuing.
• Map basic user attributes (first name, last name, email) and configure role identification using OU path, Google Groups, Department field, or a custom attribute.
• Share your chosen attribute name and example values with ClickView Support so they can configure value parsing on their end.
• Enable the ClickView app for all users in Google Workspace, then test login at clickview.net. Changes can take up to 24 hours to apply.

This guide is for IT Administrators connecting ClickView to a Google Workspace environment using SAML-based Single Sign-On. Once setup is complete, your staff and students can sign in to ClickView through your existing Google identity provider, using their existing Google credentials.

Before you start: This setup requires email exchanges with ClickView Support at defined points. Each phase builds on the last, so work through them in order.

• Phase I: create the ClickView SAML app and copy your Google IdP details.
• Phase II: send your IdP details to ClickView Support, then enter the ACS URL and Entity ID they return.
• Phase III: map your attributes, configure role identification, and enable the app.

Phase I: Creating the application

Step 1: Create a new Application

1. Sign in to the Google Workspace Admin console with an admin account.
2. In the left-hand pane, select Apps, then Web and mobile apps.


Step 2: Create a custom SAML app

1. Select Add app, then Add custom SAML app.

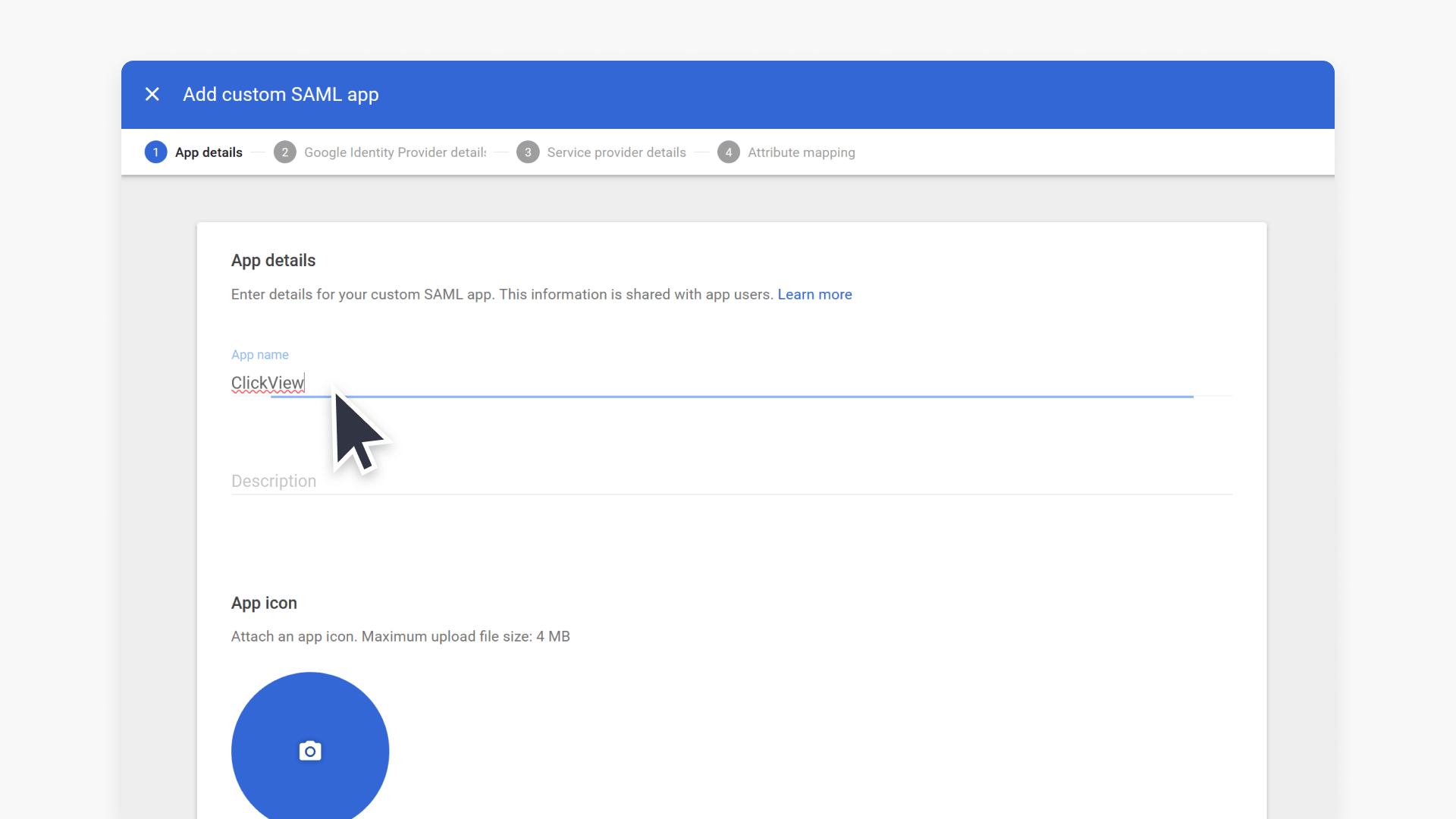

2. Enter the app name as ClickView, then select Continue.


Step 3: Copy your Google IdP details

1. Copy the SSO URL and Entity ID.

2. Download the Certificate by selecting the download icon (the downward-pointing arrow).


Contact ClickView Support
Send an email to support@clickvieweducation.com with the following:

• SSO URL and Entity ID (copied in Step 3)
• Certificate file (downloaded in Step 3)

ClickView Support will reply with an ACS URL and Entity ID for your instance. You need these to continue, so wait for their reply before moving to Phase II.

Phase II: Configuring Service Provider Details

Step 4: Enter your ClickView service provider details

1. Select Continue to add the ClickView service provider details.

1. Once ClickView Support has provided the values, enter them in the ACS URL and Entity ID fields, then select Continue to move on to attributes and mapping.


Phase III: Adding attribute mappings

Step 5: Add attribute mappings

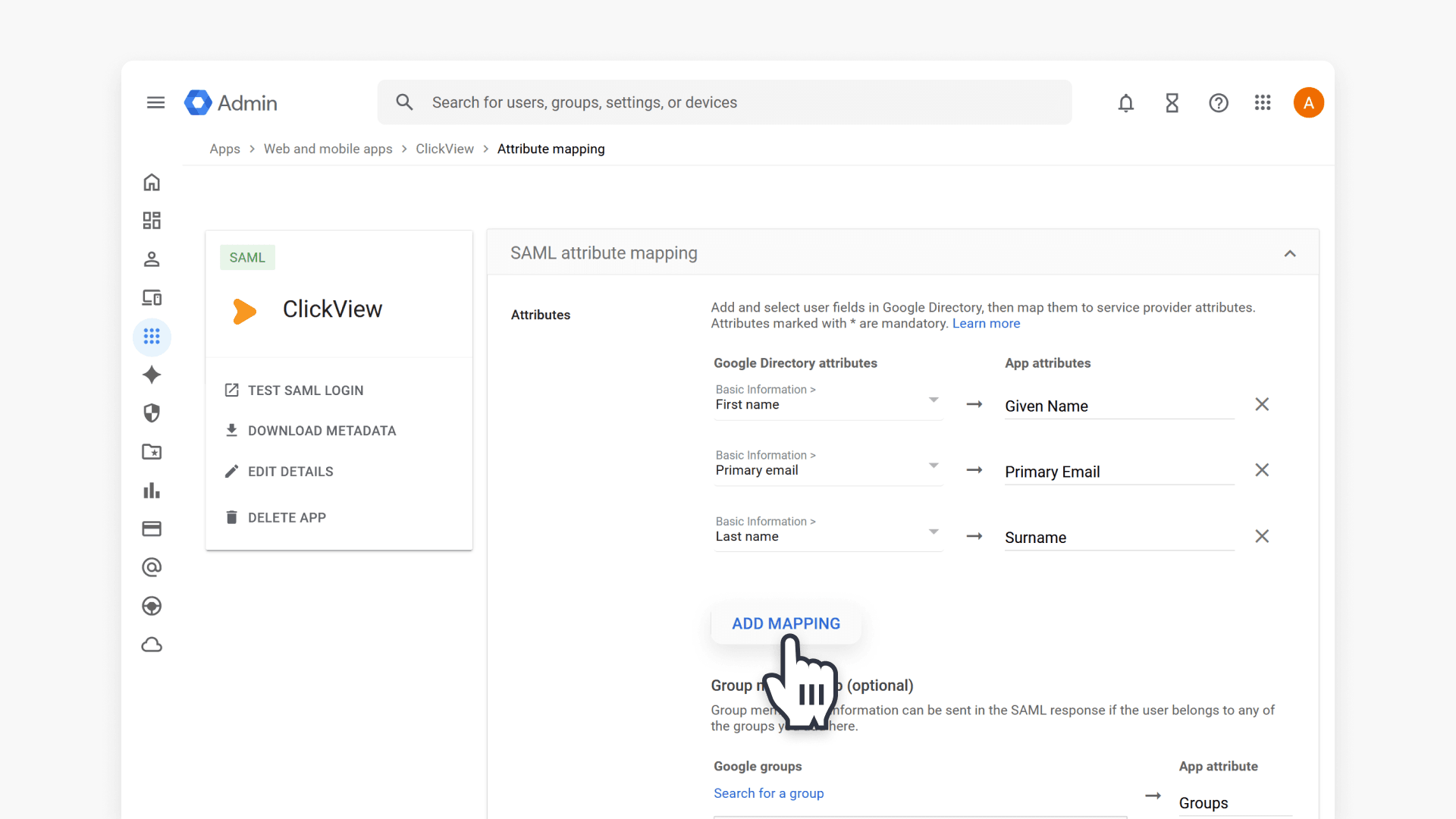

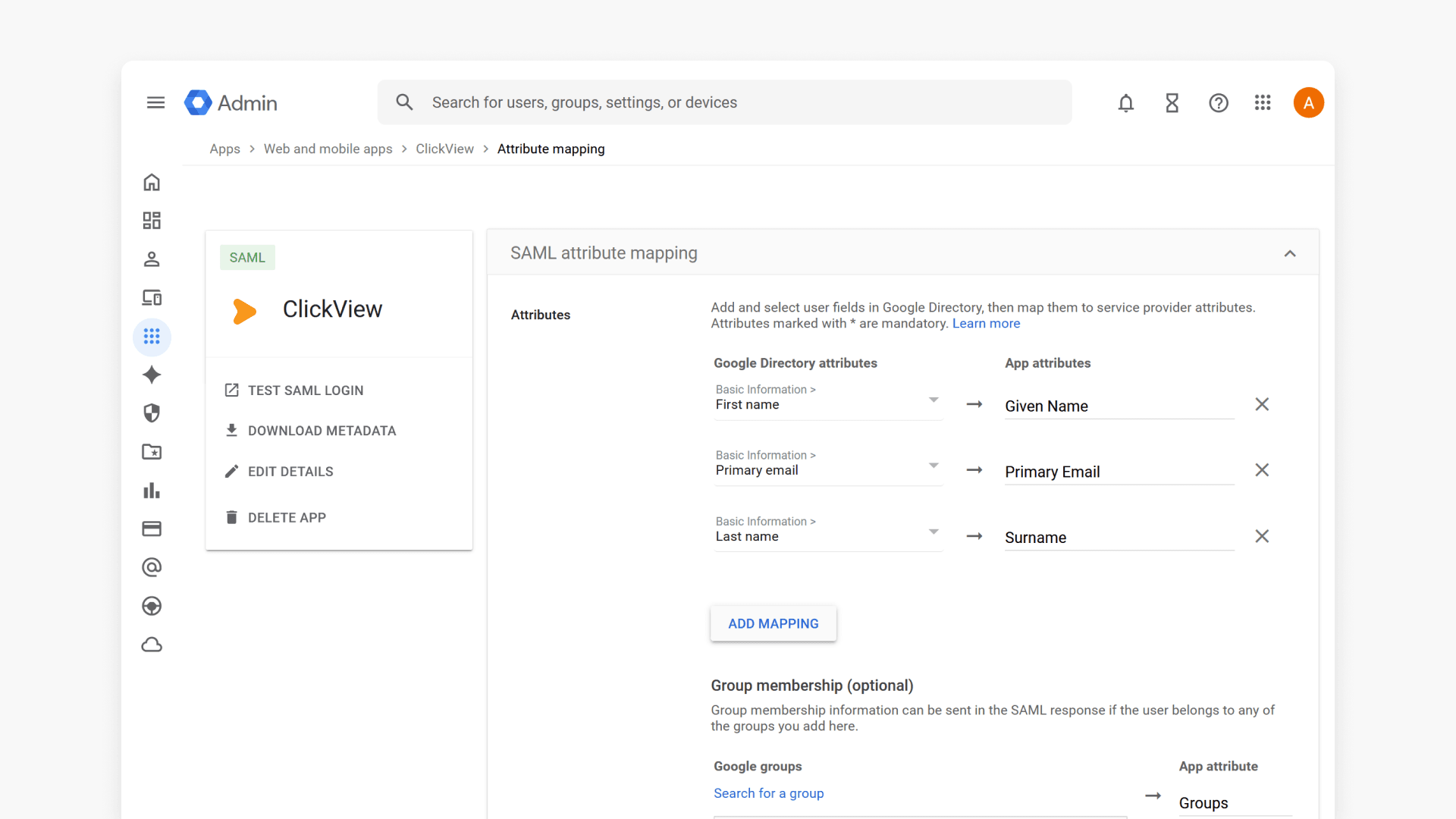

1. In the Attribute mapping section, select Add mapping and add the following basic attributes.

Select the attributes in the Attribute column from the dropdown menu, then enter the corresponding values in the Maps To column manually. Enter these exactly as shown. The setup is case-sensitive.

Step 6: Add attribute mappings for role identification

You need an attribute to identify a user’s role: whether they’re a staff member or a student, and for students, their grade level. Choose whichever option best matches how your Google Workspace is already structured.

Option A: Using organization unit path

Best if your users are already organised into OUs by role or year group (e.g. /ABC High/Staff or /ABC High/Students/Grade 9). The OU path is passed directly to ClickView and used to determine the user’s role.

1. In SAML attribute mapping, add the Organization unit path in the Google Directory Attributes drop-down menu.

2. Map to Organization unit path in the App attribute. Click Save.


Option B: Using Google groups

1. In SAML attribute mapping, scroll to the bottom and search for the desired groups under the Group membership (optional) heading
2. Enter the ‘App attribute’ value as ‘Groups’. Click Save.


Option C: Using the Department field

1. In SAML attribute mapping, add Department. Click Save.


Option D: Your own custom attributes

If none of the above match how your Google Workspace is structured, use any user attribute available in your environment, such as a custom schema field or employee ID format, as long as it carries the role or school information you need.

• In SAML attribute mapping, select Add mapping.
• Select the attribute that holds the relevant information from the dropdown. This can be any attribute visible in your Google Workspace user profiles.
• Enter the App attribute name: Role, School, or a single shared name if the attribute encodes both, then select Save

Not sure if your attribute will work? As long as it’s available in Google Workspace’s SAML attribute mapping dropdown and contains consistent, parseable values, ClickView Support configures it on their end. When you reach Step 8, include the attribute name and a few example values for Support to confirm.

Step 7: Enabling SAML app for all users

1. After the ClickView SAML App is added, open the Expand panel and change the setting from OFF for everyone to ON for everyone ➞ Click Save.


2. Once the app is enabled, navigate to https://clickview.net/ to test the SSO login. This change may take up to 24 hours to apply across all users.

Let ClickView Support know your attribute setup

Reply to the earlier email thread and include:

• The App attribute name you used.
• The attribute values from your Google Workspace (e.g. /Lincoln High/Students/Grade 9).

This allows ClickView Support to configure value parsing on their end before users sign in.

Once you’ve tested the login and confirmed it works, your users can sign in to ClickView via SAML SSO in Google Workspace.
